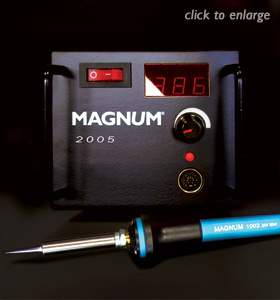

Soldering Station 2005
......New Range....
The 2005’s
Intuitive Logic
Interface controls
temperature more
precisely and more efficiently for the new
lead-free soldering
requirements.
The fully computerized 2005 works
the way you work.
It’s what it’s all about. Performance
where and when you need it.
The first in the next generation of
soldering solutions from Magnum.
- Supplied with the Soldering Iron 1002 24v 80w
- Microprocessor Digital Control
- PID temperature control set for the least overshoot
- Constant fault checking
- Electronic serial number
- Service warning every 1000 hours of operation
- Pre-set temperatures
- Earthed Hand Pieces
- Temperature range is between 150°C & 450°C (302°F & 842°F) with 2 fixed temperatures
- Temperature is accurate within ± 5°C of set temperature.
- Cast iron stand
| Input |
220V–240V 50/60Hz AC 90W |
| Power |
0.63 Amps 5mm fuse |
| Output |
24v AC 3A |
| Temperature |
|
| Soldering iron 24V 80W |
150° to 450° ±5°C |
| Dimensions |
L125mm x W125mm x H100mm |
| Weight |
2.1 KGS (4.5LBS) |
