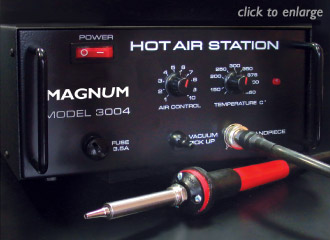

Hot Air Station 3004
The Hot Air Station 3004 is supplied with 1004 hot air
pencil, nozzles, SMD removal kit and
spring holder.
- Non-contact soldering and component
removal.
- Variable air flow control with self
contained pump.
- Stepless temperature selection between
200°C and 450°C.
- 24v 80w heating element.
- Gas input facility for inert soldering.
- Optional vacuum pickup for placing
surface mount components.
| Input |
220/240v 50/60Hz AC (330w) |
| Output |
24v 80w AC |
| Air Flow |
0-5 litres/min |
| Temp |
200°C to 450°C |
| Size |
L265mm x W225mm x H110mm |
