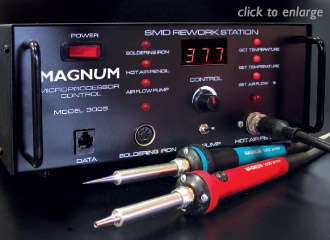

SMD Rework Station 3005
The 3005 temperature-controlled station is
precision engineered to perform on-demand
for all your SMD rework and
repair. The Hot Air Pencil is designed for
effortless removal of the components and
the Soldering iron is used for their replacement.
Both the temperature range and percentage
of air flow are monitored and adjusted
on-demand. The PCU (Portable
Configuration Unit), used as a storage
device for downloading parameters from a
PC onto the Station, locks all the parameters
including the energy saving mode. The
PCCU (Portable Configuration and
Calibration Unit) automatically calibrate the
Hot Air Pencil and the Soldering Iron to an
accurate certified source.
- Microprocessor controlled 3005 station.
- 1005 85W Hot air pencil with air flow
button.
- 1002/80W Soldering Iron with soft grip.
- Moulded power cord.
- 1.5MM Round and 3MM flat hot air
nozzles.
- Fine soldering iron tip.
- Two cast iron spring stands.
- SMD removal kit.
| Input |
220V–240V 50/60Hz 0.6 amps |
| Power |
1A 5mm fast blow fuse |
| Output |
2 x 24v 85w AC |
| Air Flow |
1.5 to 6.5 litres/min |
| Temperature |
|
| Soldering iron |
100° to 450° ±4°C |
| Hot air pencil |
180° to 480° ±10°C |
| Dimensions |
L250mm x W250mm x H105mm |
| Weight |
4 KGS (8.8LBS) |
All MAGNUM Stations comes with
cleaning equipment, spare tips and
a comprehensive instruction manual
